Creating a new Virtual Machine
There are a few different ways to create a Virtual Machine, either as a standalone VM or as a VM inside a vApp. You can follow the two guides below to setup a new VM.
Creating a Standalone VM

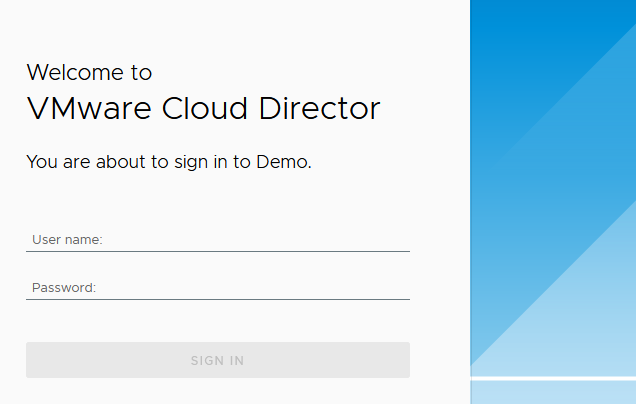

Step 1. Login to your vCloud Director management portal

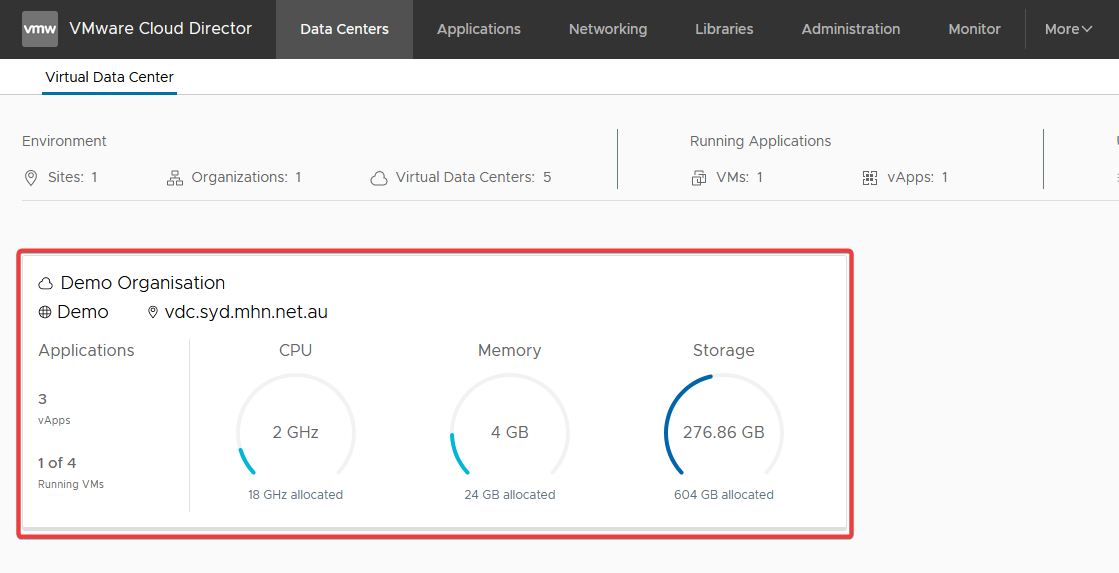

Step 2. Click into the Virtual Datacenter you want to add the network to

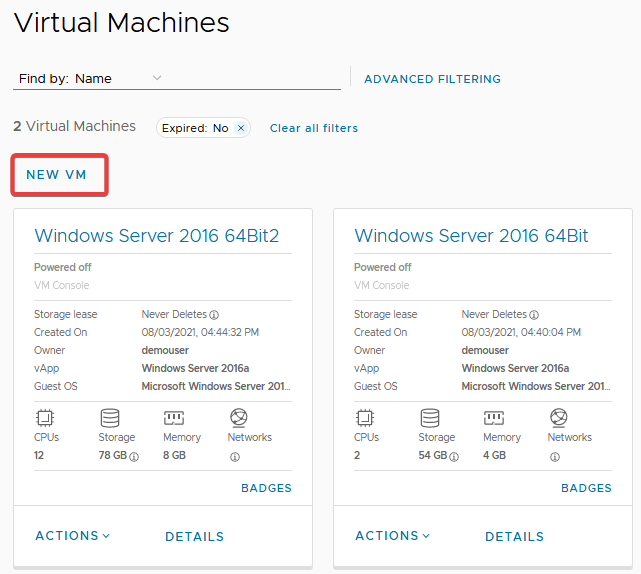

Step 3. Click on 'New VM' above the list of VMs

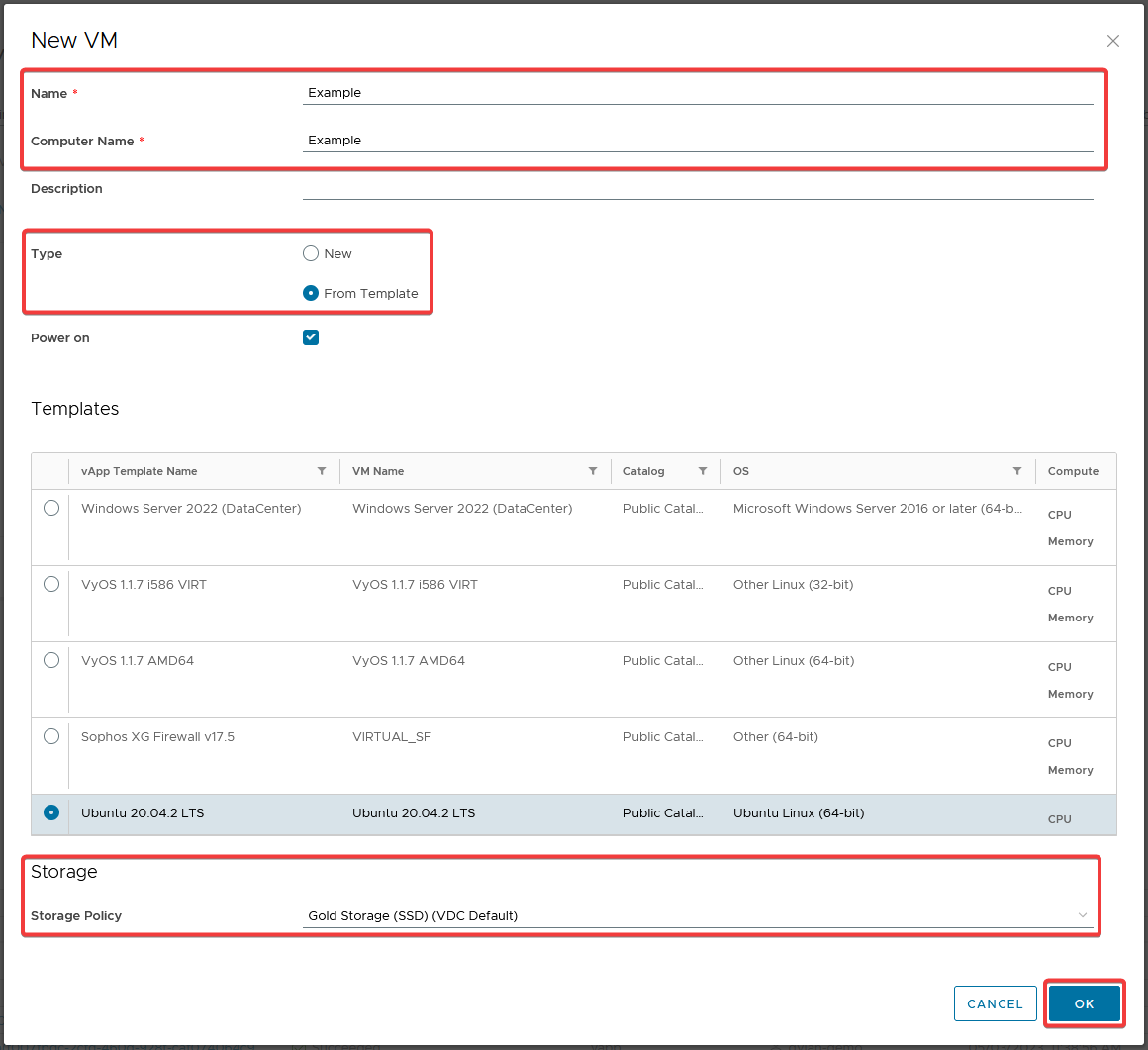

Step 4. Fill in the Required VM details, and then either specify it as a new VM or deploy it from a pre-configured template. Then specify the Storage Policy you want it on and the network configuration. Once done click 'OK' to proceed.
(Note, you may need to scroll to see the additional settings)
The VM will then be cloned from the Template or deployed as a fresh VM. If deploying as a fresh VM you will need to mount an ISO to the VM and install the guest OS, see this article to attach a VM to the VM LINK
Creating a VM inside a vApp
Step 1. Login to your vCloud Director management portal
Step 2. Click into the Virtual Datacenter you want to add the network to

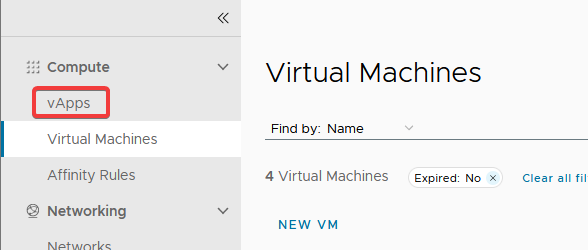

Step 3. Click on 'vApps' on the left side of the page

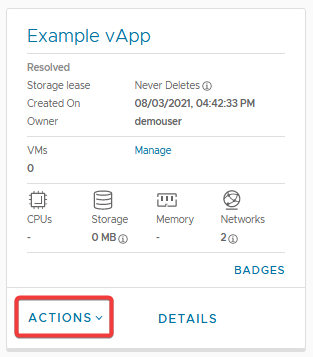

Step 4. Find the vApp you want to add a VM to and click 'Actions'

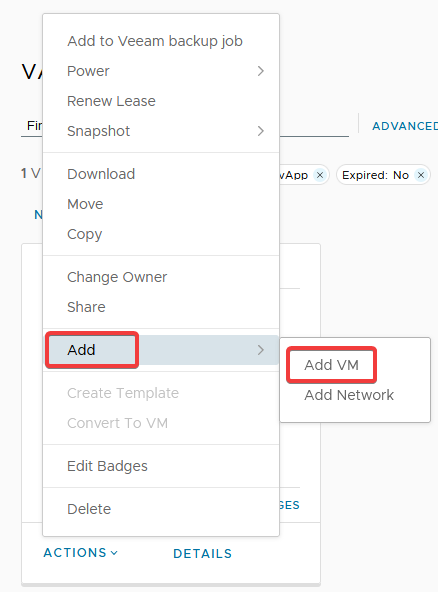

Step 5. From the dropdown menu that appears click 'Add' and then 'Add VM'

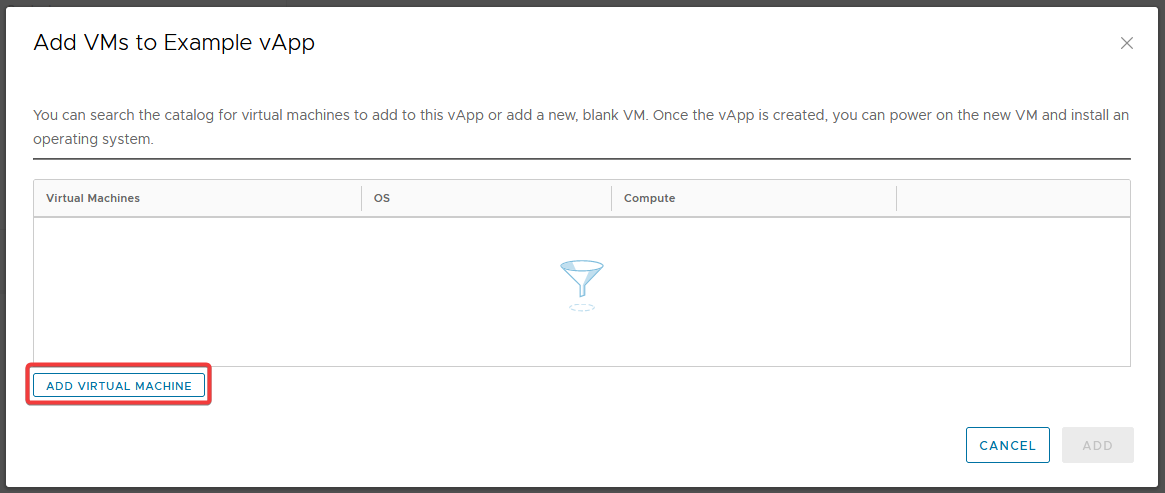

Step 6. In the Window that appears click 'Add Virtual Machine'
Step 7. Fill in the Required VM details, and then either specify it as a new VM or deploy it from a pre-configured template. Then specify the Storage Policy you want it on and the network configuration. Once done click 'OK' to proceed.
(Note, you may need to scroll to see the additional settings)

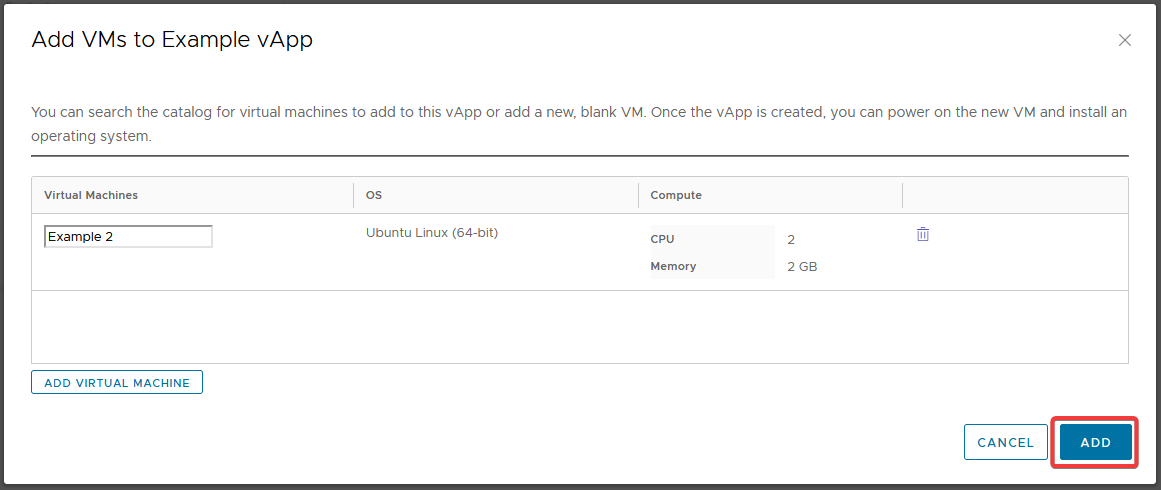

Step 8. Now click 'ADD' to start the VM deployment process
